Air filter + regulator 0,5-10bar 1/2" max 3200 l/min Irimo

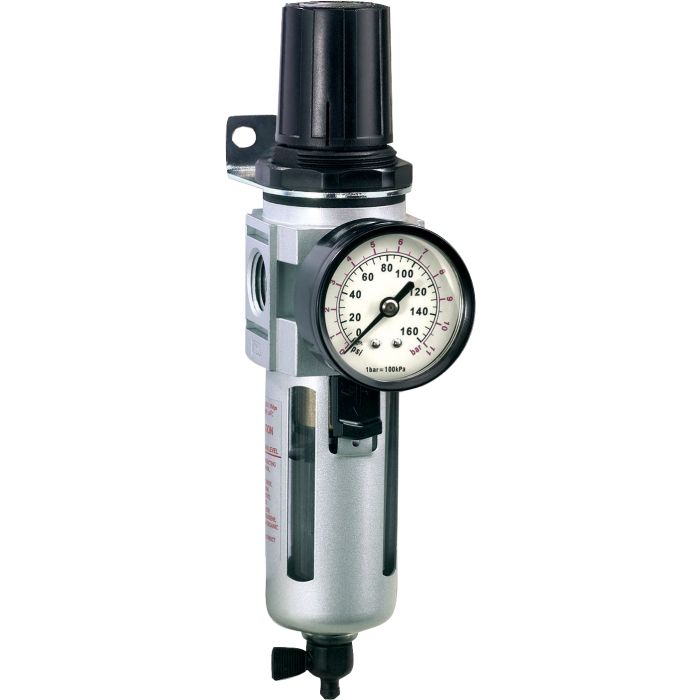

The Irimo P254 air filter-regulator provides clean, controlled compressed air for pneumatic tools and equipment. It combines a 20 µm air filter with an adjustable pressure regulator in one unit, helping to remove contaminants and condensate while maintaining the required operating pressure. Designed for professional workshop and industrial compressed-air systems, it features a 1/2 in connection and a high nominal flow rate for demanding applications.

Key features:

- Model: Irimo P254
- Type: Air filter-regulator unit
- Air connection: 1/2 in
- Adjustable pressure range: 0.5–10 bar
- Nominal flow: 3,200 NL/min
- Filtration rating: 20 µm
- Condensate bowl capacity: 100 ml
- Pressure gauge diameter: 50 mm
- Operating temperature range: +5 °C to 60 °C
- Includes pressure gauge and condensate bowl

Benefits:

- Filters particles and moisture from the compressed-air supply to help protect pneumatic equipment.
- Combines filtration and pressure control in a compact unit, simplifying air-line installation.
- Adjustable outlet pressure supports the requirements of different air tools and applications.
- High 3,200 NL/min flow capacity is suitable for professional pneumatic systems.
- The clear pressure gauge allows quick monitoring and adjustment of line pressure.
- The 100 ml bowl collects condensate for convenient maintenance.

The Irimo P254 is intended for mechanics, maintenance teams, production facilities and professional workshops using compressed-air tools. It is suitable for air distribution lines supplying impact wrenches, spray equipment, air-operated machinery and other pneumatic devices that require filtered, pressure-regulated air.

SKU: P254
EAN: 8414909914061
